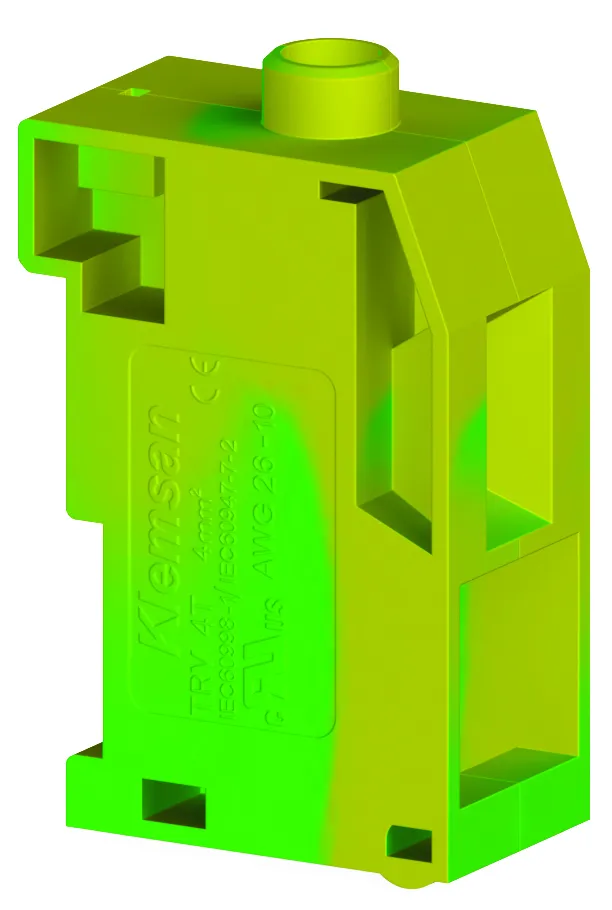

TRV 4T Жёлто-зелёный
Заземляющая трансформаторная клемма 4 мм²
Как я могу найти информацию о ценах?
Чтобы получить информацию о ценах на продукцию, создайте список заказов и свяжитесь с нами.
Минимальное количество заказа : 50
Единица упаковки : 50 шт.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Коммерческая информация
Код продажи продукта
422060
Единица Упаковки
50 шт.
Номер таможенного тарифа
853690950000
Вес за единицу, включая упаковку
0.00772 kg.
Описание продукта
Техническая информация
PRODUCT FEATURES
Number of Connections
2
Color
Yellow/Green
Number of Levels
1
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC60998-1 / 61558-1
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
CONNECTION DATA
Connection Type
Screw Connection
Single-core min. conductor cross-section
0,2 mm²
Single-core max. conductor cross-section
6 mm²
Conductor Cross Section Awgkcmil Min
24 AWG
Conductor Cross Section Awgkcmil Max
10 AWG
Multi-core min. conductor cross-section
0,2 mm²
Multi-core max. conductor cross-section
6 mm²
Multi-core min. conductor cross-section with ferrule
0,25 mm²
Multi-core max. conductor cross-section with ferrule
4 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Min
0,5 mm²
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve Max
2,5 mm²
Min. Stripping Length
9 mm
Max. Stripping Length
10 mm
Internal cylindrical indicator
B4
Tightening Torque Min
0,5 Nm
Tightening Torque Max
0,8 Nm
DIMENSIONS
Width
12 mm
Length
20,90 mm
Height
34,00 mm
Сертификаты
cULus
CE
ROHS
UKCA
UKRAYNA
cULusСечение проводника
AWG 26-10
Аксессуары
Маркировка клемм
Код товара: 505700
DB 7.5/4.5
Термоэтикетки для клемм
Код товара: 814270
D-NS 7x5
