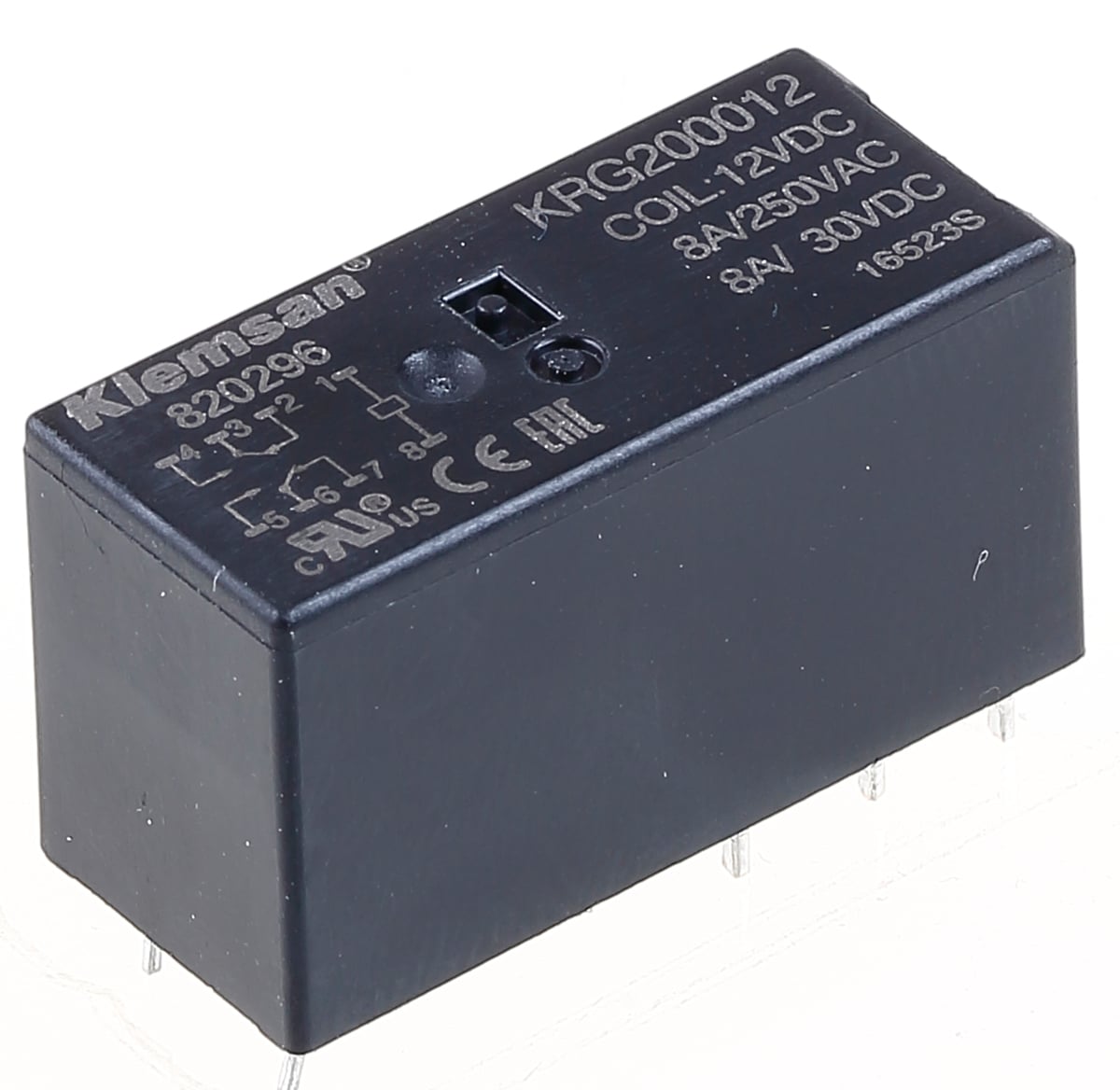

KRG200012
Промышленное реле 12VDC, 2CO, 8A
Как я могу найти информацию о ценах?
Чтобы получить информацию о ценах на продукцию, создайте список заказов и свяжитесь с нами.
Минимальное количество заказа : 10
Единица упаковки : 10 шт.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Коммерческая информация
Код продажи продукта
820296
Единица Упаковки
10 шт.
Номер таможенного тарифа
853641900000
Вес за единицу, включая упаковку
0.014 kg.
Описание продукта
Техническая информация
PRODUCT FEATURES
Operating Temperature
-40°C ~ +85°C °C
ELECTRICAL FEATURES
Input Voltage
12 VDC
Pick Up Voltage 23c
DC = %70
Drop Out Voltage 23c
DC = %10
Coil Operating Power
DC (W) = 0,43
Nominal Voltage
12 VDC
Coil Resistance
360 Ohm
Nominal Voltage
VAC
Insulation Resistance
=1000M Ohm (500VDC)
environmental-conditions
Relative Humidity Non Condensing
%5 ~ %85
dielectric-strength
Between Contacts And Coil
5000 VAC / 1 minute (leakage current 1mA) V/min
Between Contacts
1000 VAC / 1 minute (leakage current 1mA) V/min
Operate Time
=10ms
Release Time
(at nom. voltage) = 5ms
Сертификаты
Аксессуары
Аксессуары
Код товара: 820277
CLP/KRB-C-15L
PRODUCT FEATURES
Operating Temperature
-40°C ~ +85°C °C
ELECTRICAL FEATURES
Input Voltage
12 VDC
Pick Up Voltage 23c
DC = %70
Drop Out Voltage 23c
DC = %10
Coil Operating Power
DC (W) = 0,43
Nominal Voltage
12 VDC
Coil Resistance
360 Ohm
Nominal Voltage
VAC
Insulation Resistance
=1000M Ohm (500VDC)
environmental-conditions
Relative Humidity Non Condensing
%5 ~ %85
dielectric-strength
Between Contacts And Coil
5000 VAC / 1 minute (leakage current 1mA) V/min
Between Contacts
1000 VAC / 1 minute (leakage current 1mA) V/min
Operate Time
=10ms
Release Time
(at nom. voltage) = 5ms
