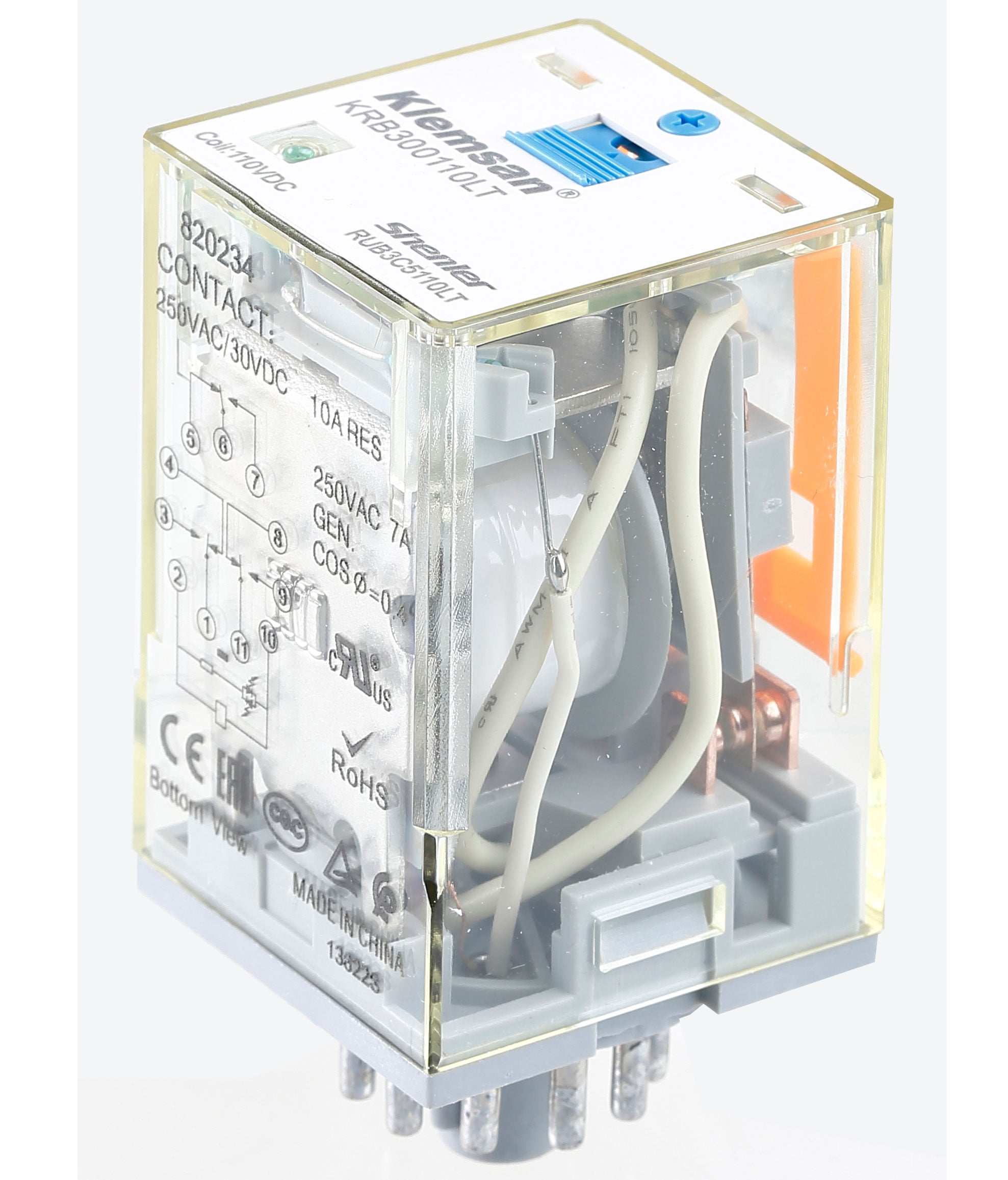

KRB300110LT
Промышленное реле 110 VDC, 3CO, 10A, LED, TEST B
Как я могу найти информацию о ценах?
Чтобы получить информацию о ценах на продукцию, создайте список заказов и свяжитесь с нами.
Минимальное количество заказа : 10
Единица упаковки : 10 шт.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Коммерческая информация
Код продажи продукта
820234
Единица Упаковки
10 шт.
Номер таможенного тарифа
853641900000
Вес за единицу, включая упаковку
0.086 kg.
Описание продукта
Техническая информация
PRODUCT FEATURES
Operating Temperature
-10°C ~ +70°C °C
ELECTRICAL FEATURES
Input Voltage
110 VDC
Pick Up Voltage 23c
= %80
Drop Out Voltage 23c
DC
Coil Operating Power
DC (W) = 1,5
Nominal Voltage
110 VDC
Coil Resistance
7360 Ohm
Nominal Voltage
VAC
Insulation Resistance
=1000 M Ohm (500 VDC)
Led
+
Test Button
+
environmental-conditions
Relative Humidity Non Condensing
%5 ~ %85
dielectric-strength
Between Contacts And Coil
5000VAC / 1 min (leakage current 1mA) V/min
Between Contacts
1000VAC / 1 min (leakage current 1mA) V/min
Operate Time
(at nom. voltage) =20ms
Release Time
(at nom. voltage) =20ms
Сертификаты
Аксессуары
Аксессуары
PRODUCT FEATURES
Operating Temperature
-10°C ~ +70°C °C
ELECTRICAL FEATURES
Input Voltage
110 VDC
Pick Up Voltage 23c
= %80
Drop Out Voltage 23c
DC
Coil Operating Power
DC (W) = 1,5
Nominal Voltage
110 VDC
Coil Resistance
7360 Ohm
Nominal Voltage
VAC
Insulation Resistance
=1000 M Ohm (500 VDC)
Led
+
Test Button
+
environmental-conditions
Relative Humidity Non Condensing
%5 ~ %85
dielectric-strength
Between Contacts And Coil
5000VAC / 1 min (leakage current 1mA) V/min
Between Contacts
1000VAC / 1 min (leakage current 1mA) V/min
Operate Time
(at nom. voltage) =20ms
Release Time
(at nom. voltage) =20ms
