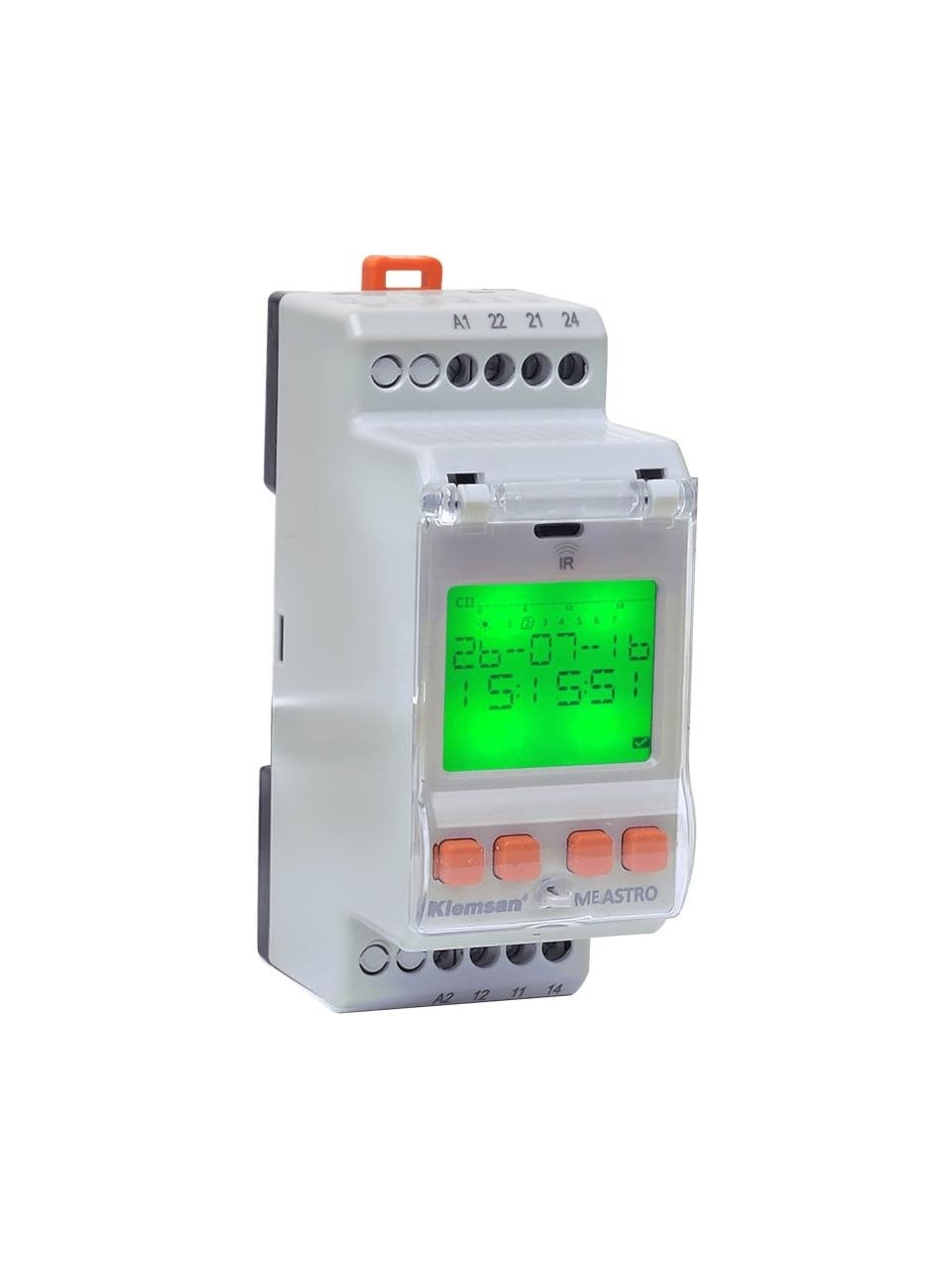

MEASTRO 122
Астрономическое реле времени
Как я могу найти информацию о ценах?
Чтобы получить информацию о ценах на продукцию, создайте список заказов и свяжитесь с нами.
Минимальное количество заказа : 1
Единица упаковки : 1 шт.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Коммерческая информация
Код продажи продукта
270705
Единица Упаковки
1 шт.
Номер таможенного тарифа
853649000029
Вес за единицу, включая упаковку
0.2 kg.
Описание продукта
Техническая информация
general
Lcd Screen
+
Connection Type
Screw terminal
Protection Class
IP20
Case Width Mm
36 mm
Mounting Type
Rail Mount
Supply Frequency
50-60Hz
Output Type
Relay
Screen Size
1,5 "
Screen Refresh Time
0,5 sn
Number Of Programs
100
Infrared Distance
550 mm
Truth
±1sec/day
Battery Reserve Time
7 Yil / Years
power-supply
Voltage
180…265 V AC
Frequency
35-70Hz
Power Consumption
<11VA AC
environmental-conditions
Operating Temperature
-20°C..+70 °C
Storage Temperature
-30°C..+80 °C
Relative Humidity Non Condensing
90% non-condensing
communication
Protocol
Modbus RTU (RS485)
Baud Rate
1200 .. 115200
Slave Id
1 .. 247
relay-output
Number Of Outputs
1
Max Switching Current
16A / 250VAC
Max Switching Power
1250VA
Type
2 C/O (SPDT)
Electrical Life
5x10^4
Mechanical Life
= 10^7
Сертификаты
CE
UKCA
UL
