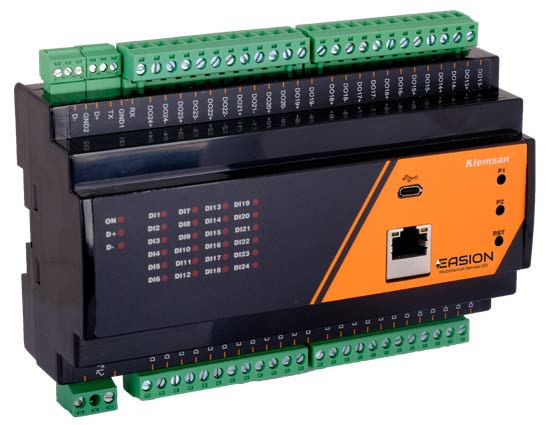

EASION 5M-LL111
Удаленный I/O
Как я могу найти информацию о ценах?
Чтобы получить информацию о ценах на продукцию, создайте список заказов и свяжитесь с нами.
Минимальное количество заказа : 1
Единица упаковки : 1 шт.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Коммерческая информация
Код продажи продукта
260307
Единица Упаковки
1 шт.
Номер таможенного тарифа
853710980019
Описание продукта
Техническая информация
general
Case Width Mm
(95mmx160mm)x58mm
Mounting Type
Rail Mount
power-supply
Voltage
24 – 50 V AC / 12 – 50 V DC
Frequency
45-65 Hz
Consumption
<13VA AC / <7W
mechanical-properties
Packaging Quantity
1
environmental-conditions
Operating Temperature
-20 to +70 °C
Storage Temperature
-20°C..+70°C
Relative Humidity Non Condensing
Max.95% (no condensation)
relay-output
Number Of Outputs
12
Max Switching Current Voltage Power
5A / 250VAC /1250 VA
inputs-wet-contact
Number Of Inputs
12
Input Voltage
12 - 230 V AC/DC
Input Current
1 mA at 5V AC/DC-2,5 mA at 24V AC/DC-4 mA at 230V AC/DC
Frequency
45-65 Hz
Isolation Level
5000Vrms optical insulation
communication-http-rest
Interface
Micro USB
Baud Rate
38400
communication-modbus-tcp
Interface
+
communication-mqtt-http-rest
Interface
Ethernet 10/100 Base - TX
communication-rs232-modbus-rtu
Baud Rate
1200 .. 115200
Stop Bit
1,2
Slave Id
1 ..247
Сертификаты
CE
UKRAYNA
