B45-0W-O1

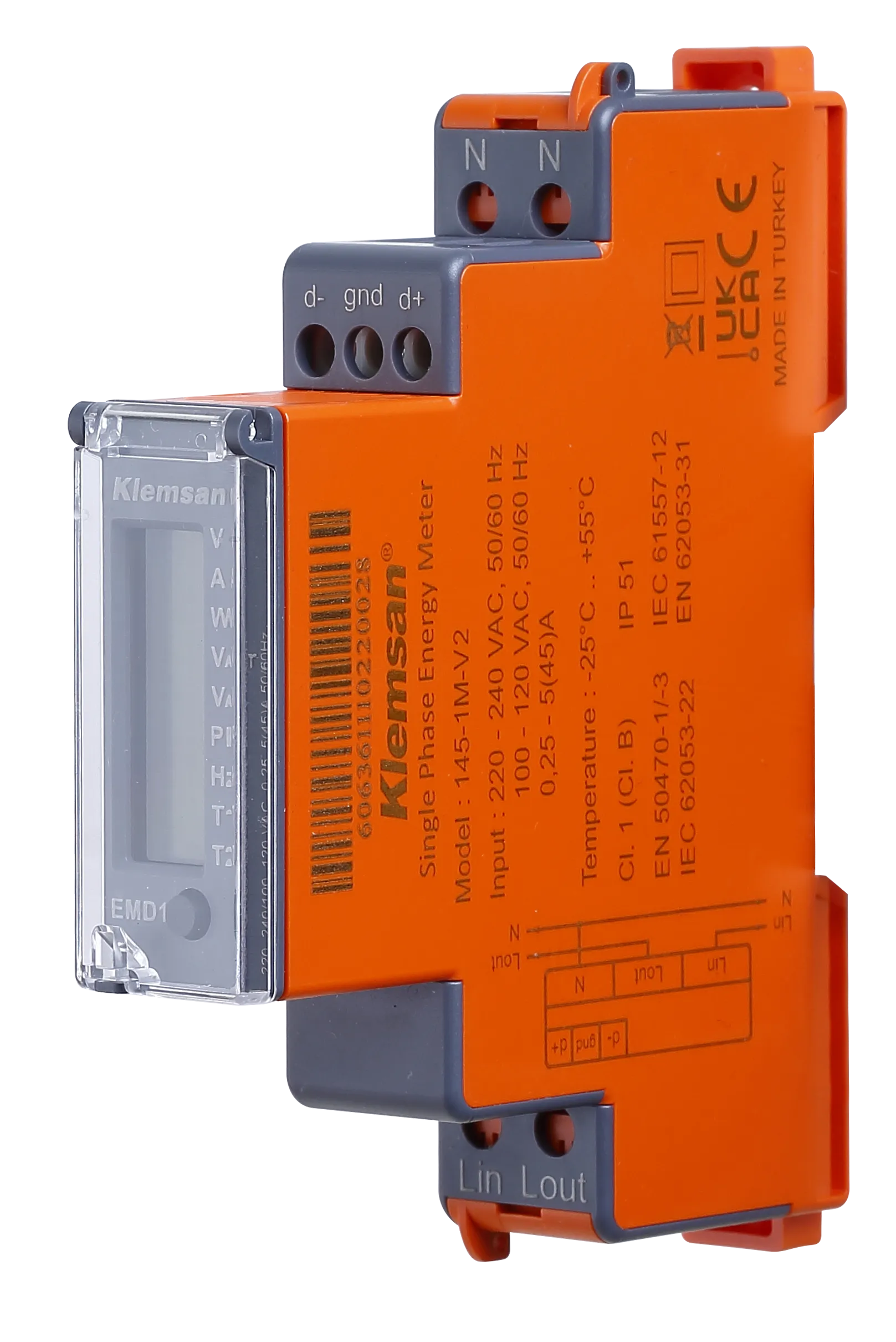

1Ø счетчик энергии MID
Как я могу найти информацию о ценах?
Чтобы получить информацию о ценах на продукцию, создайте список заказов и свяжитесь с нами.
Минимальное количество заказа : 1
Единица упаковки : 1 шт.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Коммерческая информация
Код продажи продукта
606357
Единица Упаковки
1 шт.
Номер таможенного тарифа
903032009011
Вес за единицу, включая упаковку
0.08 kg.
Описание продукта
Техническая информация
general
Connection Type
1P2W
Real Time Clock
-
Current Connection Type
Direkt Baglantili (45A ya kadar)
energy-measurement
Number Of Tariffs
1
Number Of Sub Tariffs
-
Number Of Reactive Measurement Zones
-
Energy Measurement Type
Import kWh
Partial Counter
-
current-measurement-input
Measuring Range
0,25 .. 45A
voltage-measurement-input
Measuring Range L N
100-300V AC
Measuring Range L L
-
power-quality-measurements
Harmonic Measurement Current And Voltage
-
Thdi
-
Thdv
-
power-supply
Voltage
100-300V AC
Frequency
45-65Hz
Consumption
<3VA AC
mechanical-properties
Weight G
80
Protection Class
IP20
Mounting Type
Rail Mount
environmental-conditions
Operating Temperature
-25°C +50°C
Storage Temperature
-25°C +70°C
Relative Humidity Non Condensing
Max. 80% (no condensation)
communication
Protocol
-
Baud Rate
-
Parity
-
Stop Bit
-
Slave Id
-
Isolation
-
digital-output
Frequency
5-30 VDC
Number Of Inputs
1 (sabit)
Switched Voltage Range
Transistor
Isolation
3750 Vrms
digital-input
Number Of Inputs
-
Input Type
-
Isolation
-
other-measurements
Operating Time Counter
-
Open Time Counter
-
Power Failure Counter
-
basic-electrical-measurements
Current
-
Voltage
-
Frequency
-
measurement-class
En 50470
Class B
62053 21
-
led-impulse
Kwh
+
Сертификаты
CE
UKCA
UL
