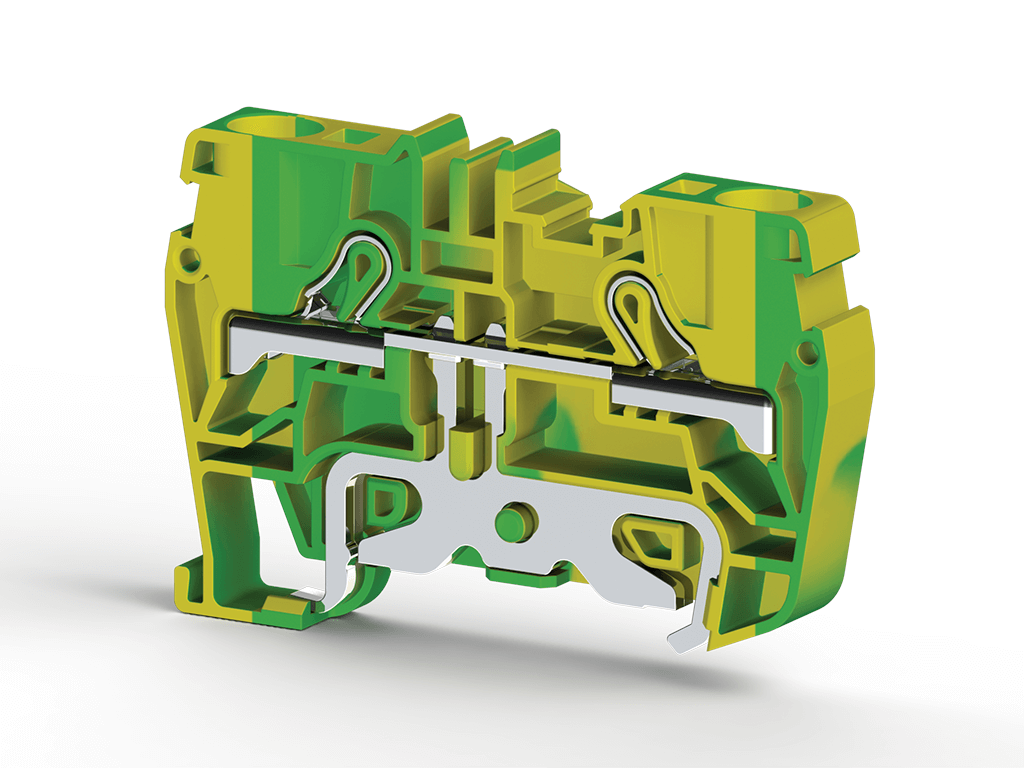

PYK 6T
Клеммная колодка push-in, 6 мм² заземляющая
Как я могу найти информацию о ценах?
Чтобы получить информацию о ценах на продукцию, создайте список заказов и свяжитесь с нами.
Минимальное количество заказа : 60
Единица упаковки : 60 шт.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Коммерческая информация
Код продажи продукта
336520
Единица Упаковки
60 шт.
Номер таможенного тарифа
853690950000
Вес за единицу, включая упаковку
0.02233 kg.
Описание продукта
Техническая информация
PRODUCT FEATURES
Number of Connections
2
Color
Yellow-Green
Number of Levels
1
Protective Conductor Type
PE
Insulation Material
PA
UL 94 Flammability Class
V2
Impulse Voltage Category
III
Insulation Material Group
I
Pollution Degree
3
Connection According to Standard
IEC 60947-7-2
Continuous Operating Temperature max.
120 °C
Continuous Operating Temperature min.
-55 °C
ELECTRICAL FEATURES
Nominal Impulse Voltage
8 Kv
CONNECTION DATA
Connection Type
Push-In Connection
Single-core min. conductor cross-section
0,5 mm²
Single-core max. conductor cross-section
10 mm²
Conductor Cross Section Awgkcmil Min
20 AWG
Conductor Cross Section Awgkcmil Max
8 AWG
Multi-core min. conductor cross-section
0,5 mm²
Multi-core max. conductor cross-section
6 mm²
Multi-core min. conductor cross-section with ferrule
0,5 mm²
Multi-core max. conductor cross-section with ferrule
6 mm²
Min. Stripping Length
11 mm
Max. Stripping Length
13 mm
Internal cylindrical indicator
A5
2 Conductors Of The Same Cross Section Multi Core Twin Ferrule With Plastic Sleeve
1,5 mm²
DIMENSIONS
Width
8 mm
Length
65,6 mm
Height Mr 35x75
46,2 mm
Height MR 35x15
53,7 mm
Сертификаты
cULus
ATEX
CE
EAC
DNV
ROHS
UKRAYNA
UKCA
cULusСечение проводника
AWG 20-8
Аксессуары
Концевой фиксатор
с цинковым покрытием
Код товара: 500601
Прямой (1 м) рельс MR 35x7.5 с цинковым покрытием.
Код товара: 500607
Перила MR 35x15 с пазами (1 м), оцинкованные
Код товара: 500606
Прямой (1 м) рельс MR 35x15 с цинковым покрытием
Çinko Kaplı
Код товара: 500602
MR 35x7,5 Slotlu (1m) Çinko Kaplı Ray
Маркировка клеммных колодок
Код товара: 1020100
SLF-P1 W 11,2mm x 15m
