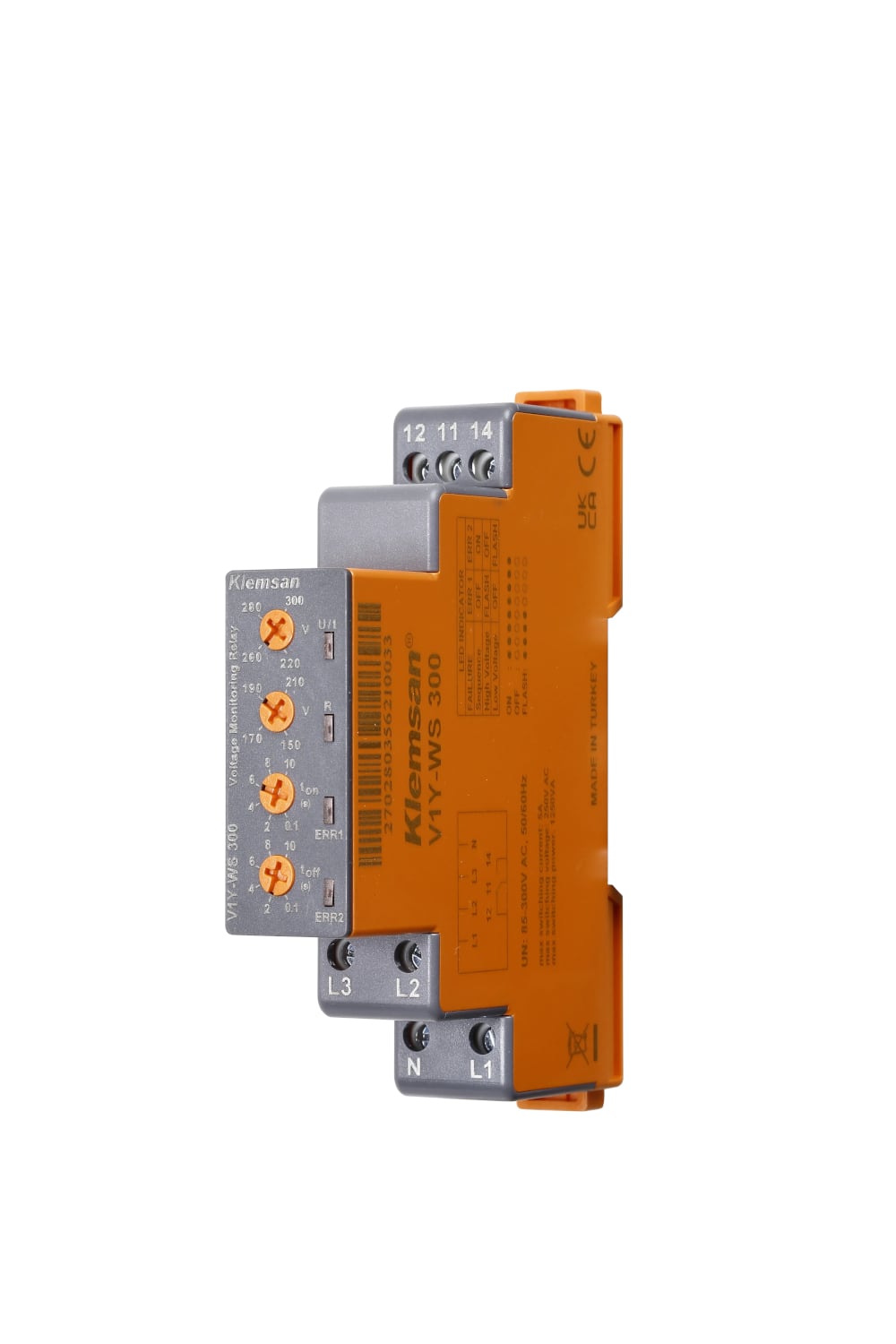

V1Y-WS 300
Реле защиты двигателя
Как я могу найти информацию о ценах?
Чтобы получить информацию о ценах на продукцию, создайте список заказов и свяжитесь с нами.
Минимальное количество заказа : 1
Единица упаковки : 1 шт.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Коммерческая информация
Код продажи продукта
270280
Единица Упаковки
1 шт.
Номер таможенного тарифа
853649000029
Вес за единицу, включая упаковку
0.08 kg.
Описание продукта
Техническая информация
general
Networks
3Ø with neutral
Connection Type
Screw terminal
Protection Class
IP20
Weight G
80
Packaging Quantity
1
Case Width Mm
18
Mounting Type
Rail Mount
Nominal Voltage
230 V
Emc Emi
ok
power-supply
Voltage
85-300V LN ±20% AC
Frequency
50-60Hz
Consumption
<13VA AC
environmental-conditions
Operating Temperature
-20 to +60°C
Storage Temperature
-40°C +75°C
Relative Humidity Non Condensing
Max. 95% (no condensation)
backup-connections
Type
1 C/O (SPDT)
Max Values Ac No Side
10A/250V; 1250 VA
Max Values Dc No Side
5A/30VDC; 150W
Mechanical Operating Life
= 10^7 operations
Electrical Operating Life No Side
5x10^4 (5A@250VAC) 1x10^5 (5A@30VDC)
monitoring-functions
Phase Loss Delay Time
500 ms
Phase Sequence Delay Time
500 ms
Neutral Loss Delay Time
500 ms
Voltage Protection Upper Limit
220 - 300 VAC
Voltage Protection Lower Limit
150 - 210 VAC
Voltage Protection Delay Time
"ton= 0.1 .. 10 sn / toff
Voltage Protection Hysteresis
3% x Un
Сертификаты
CE
UKCA
UL
