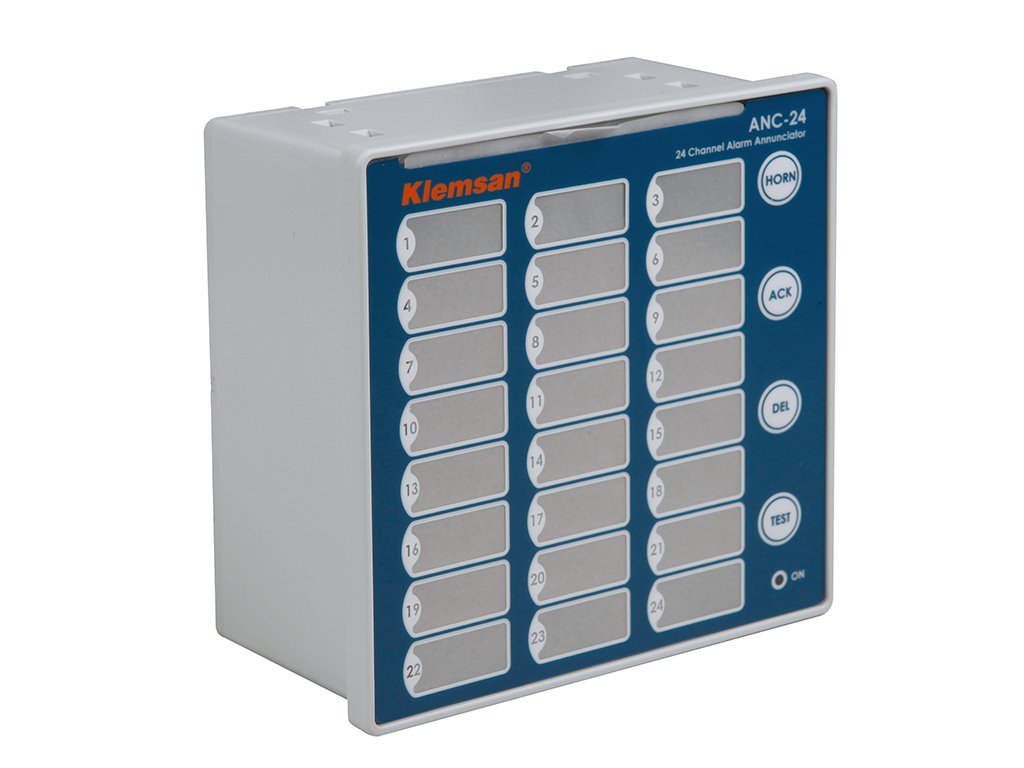

ANC-24 (110V AC/ DC, 24-50VAC/DC п.с.)
Индикатор тревоги
Как я могу найти информацию о ценах?
Чтобы получить информацию о ценах на продукцию, создайте список заказов и свяжитесь с нами.
Минимальное количество заказа : 1
Единица упаковки : 1 шт.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Коммерческая информация
Код продажи продукта
604667
Единица Упаковки
1 шт.
Номер таможенного тарифа
853180709000
Вес за единицу, включая упаковку
540g kg.
Описание продукта
Техническая информация
general
Connection Type
Screw terminal
Time Interval
0,2,5,10,15,20,25,30 adjustable
Integrated Buttons
4 (Horn, Ack, Delete, Test)
Siren
+
Real Time Data Recording
6080 logs
Battery Life
> 5 years
Protection Class
IP20
Weight G
540
Packaging Quantity
1
Diagrams
---
Dimensions
---
power-supply
Voltage
<10VA DC / <5W AC
Frequency
45-65Hz
environmental-conditions
Operating Temperature
-20°C +60°C
Storage Temperature
-40°C +75°C
Relative Humidity Non Condensing
Max.95% (no condensation)
communication
Protocol
Modbus RTU
Baud Rate
1200-57600
Isolation
2500Vrms
input-signal
Voltage
48V AC / DC
Frequency
45-65Hz
Quantity
24
Response Time
25±10ms
output-connections
Output Type
Relay
Number Of Connections
2
Type
1 NO (SPST)
Max Values Ac
5A/277V;1385VA
Max Values Dc
5A/30VDC;150W
Mechanical Operating Life
=10^8 operation
Electrical Operating Life No Side
1x10^5(5A@250VAC)
window
Quantity
24
Color
Red / Green selectable
Size Mm
24,4x11,9
Illumination
With 2 pcs. red leds or 2 pcs. green led
Fast Flashing
180 Flash / Min
Slow Flashing
60 Flash / Min.
Marking
Laser printed onto standart tracing paper, using templates provided bu Klemsan Inc.
DIMENSIONS
Frontoverall Dimensions Height Mm
144
Frontoverall Dimensions Width Mm
137
Сертификаты
CE
UKRAYNA
TSE
