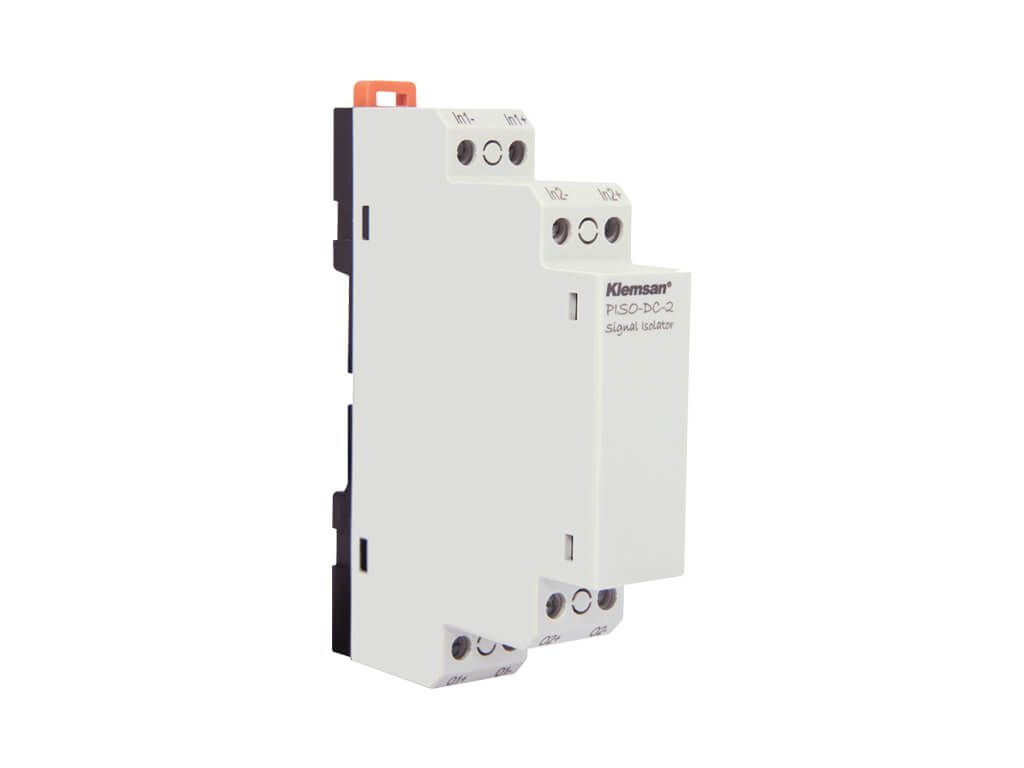

PISO-DC-2(4-20mA/4-20mA)
Пассивный изолятор DC сигнала
Как я могу найти информацию о ценах?
Чтобы получить информацию о ценах на продукцию, создайте список заказов и свяжитесь с нами.
Минимальное количество заказа : 1
Единица упаковки : 1 шт.
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Коммерческая информация
Код продажи продукта
602851
Единица Упаковки
1 шт.
Номер таможенного тарифа
854370900019
Описание продукта
Техническая информация
general
Connection Type
Screw terminal
Protection Class
IP20
Case Width Mm
17,5
Mounting Type
Panel or Rail
Isolation
1.5 kVrms
Measurement Error Full Scale
< 0.1%
Response Time
20 ms
Temperature Coefficient
< 50 ppm/K
inputs-and-outputs
Number Of Input Channels
2
Input Signal Type
0-20mA
Input Max Signal
50mA
Number Of Output Channels
2
Output Signal Type
0-20mA
Output Max Current
24mA
Output Max Voltage
---
Output Ripple
<20mV (Full Scale)
Output Load Capacity
= 250 Ohm
mechanical-properties
Packaging Quantity
1
environmental-conditions
Operating Temperature
-20°C +60°C
Storage Temperature
-40°C +75°C
Relative Humidity Non Condensing
Max. 95%
emc-emi
Radiated Emission Test 61000 6 2ac
2012, 61000-6-4
Сертификаты
CE
UKCA
