Klemsan

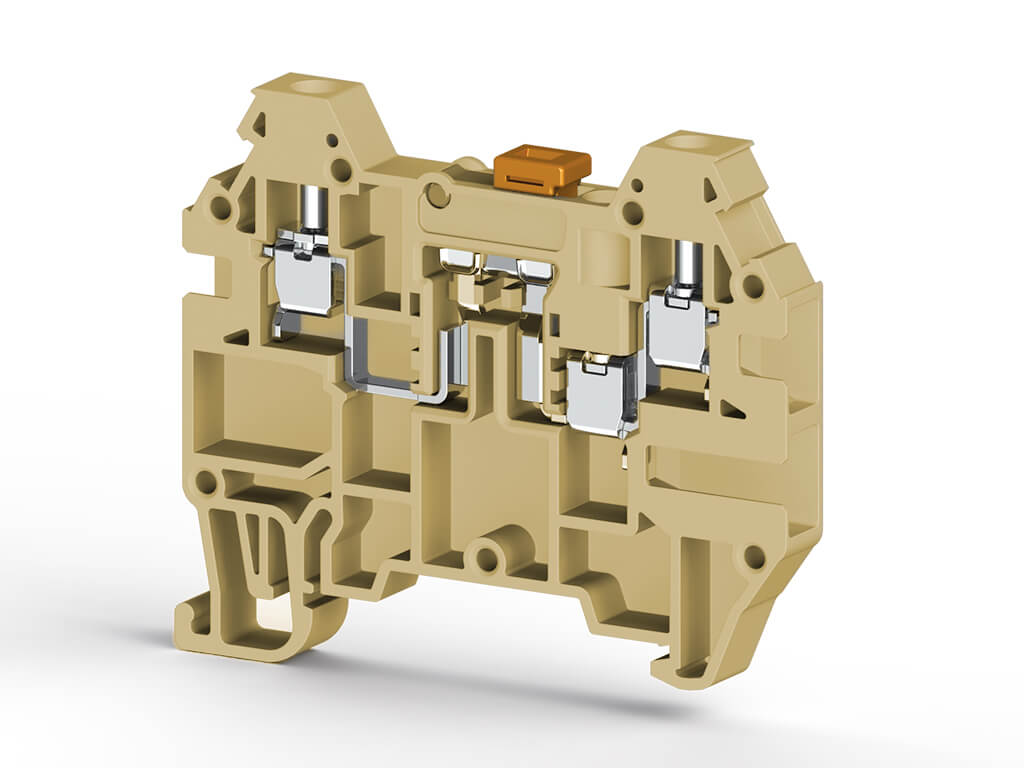

324940 AVK 2,5EA

2,5 mm2, type à vis, pont simple 1 entrée 2 sorties bornier de déconnexion, Matériau d'isolation PA, Beige

INFO TECHNIQUE
ACCESSOIRES
CERTIFICATS
TÉLÉCHARGEMENTS
INFO DE COMMANDE
Créer un PDF

Informations générales sur le produit	Matériau isolant	PA
	Classe d'inflammabilité selon. à UL 94	V2
	Unité d'emballage	80
	Poids (g)	---
Dimensions	Largeur	6 mm
	Longueur	57.10 mm
	Hauteur (MR 32)	--- mm
	Hauteur (MR 35x7,5)	50.10 mm
Données techniques TSE / CE	Tension nominale	400 V ~
	Courant nominal	16 A
	La Coupe transversale	2.5 mm²
	Norme	EN 60947-7-1/EN 60947-7-3
Données techniques VDE	Tension nominale	--- V ~
	Courant nominal	--- A
	La Coupe transversale	2.5 mm²
	Norme VDE	---
Données techniques UL / CSA	Tension nominale	--- V ~
	Courant nominal	--- A
	La Coupe transversale	2.5
Données techniques ATEX	Tension nominale	--- V ~
	Courant nominal	--- A
	La Coupe transversale	2.5
Données de connexion	Section transversale minimale de brin solide	0.5 mm²
	Sectiontransversale maximale de brin solide	4 mm²
	Section transversale minimale des brins fins	0.5 mm²
	Sectiontransversale maximale de brin fin	4 mm²
	Gamme de conducteurs AWG	26-12
	Type de connexion	screw/vidalı
	Longueur de dénudage de l’Isolant	10 mm
	Couple de serrage	0.4/0.6 Nm

étiquettessur -avec Attache PC (Série DG)

Certificat de conformité de l'Ukraine

Certificat CE

EAC russe

LAPEM - Certificat Retie

EPLAN Macro [ema]

EPLAN Macro_3D [ema]

AutoCat File [dxf]

AutoCat File [IGS]

AutoCat File [STP]

PDF File [pdf]

	324940			2,5 mm2, type à vis, pont simple 1 entrée 2 sorties bornier de déconnexion, Matériau d'isolation PA, Beige
	324949			2,5 mm2, type à vis, pont simple 1 entrée 2 sorties bornier de déconnexion, Matériau d'isolation PA, Gris
